perfil-de-sobrepor-led-60mm-com-difusor-recuado

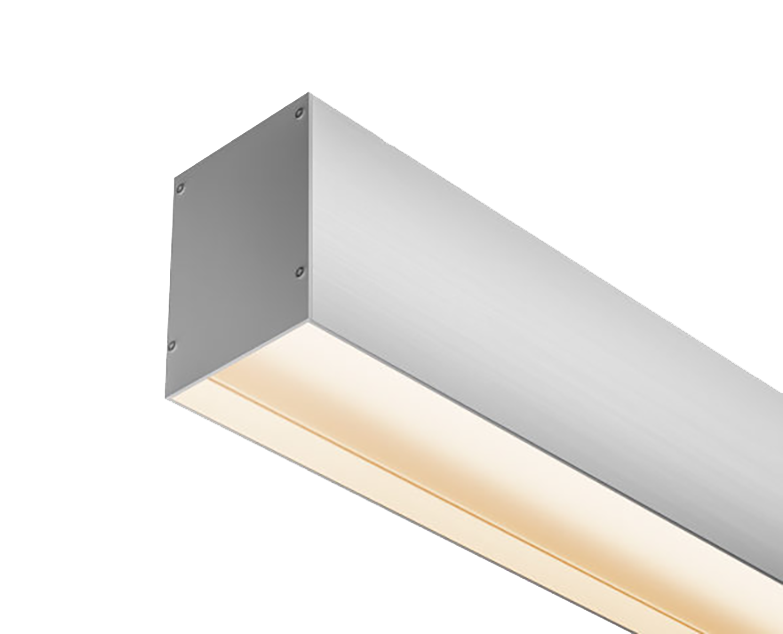

Perfil de Sobrepor LED 60mm com Difusor Recuado
LED 2700K, 3000K, 4000K OU 5700K
DOWNLOADS
FICHA TÉCNICA
Código: SBP-R60
Corpo em alumínio extrudado e usinado
Difusor em PMMA extrudado translúcido anti UV recuado para reduzir o ofuscamento
Cabeceiras em zamak
Pintura eletrostática epóxi microtexturizada
Placa de LED rígida parafusada em perfil
Vida útil: 50.000h L70
Alimentação em 80 a 250Vac com driver incorporado ou em 12Vcc com driver remoto externo
Fixação com parafusos ocultos diretamente no forro ou alvenaria
Corte personalizado sob medida (cm a cm)

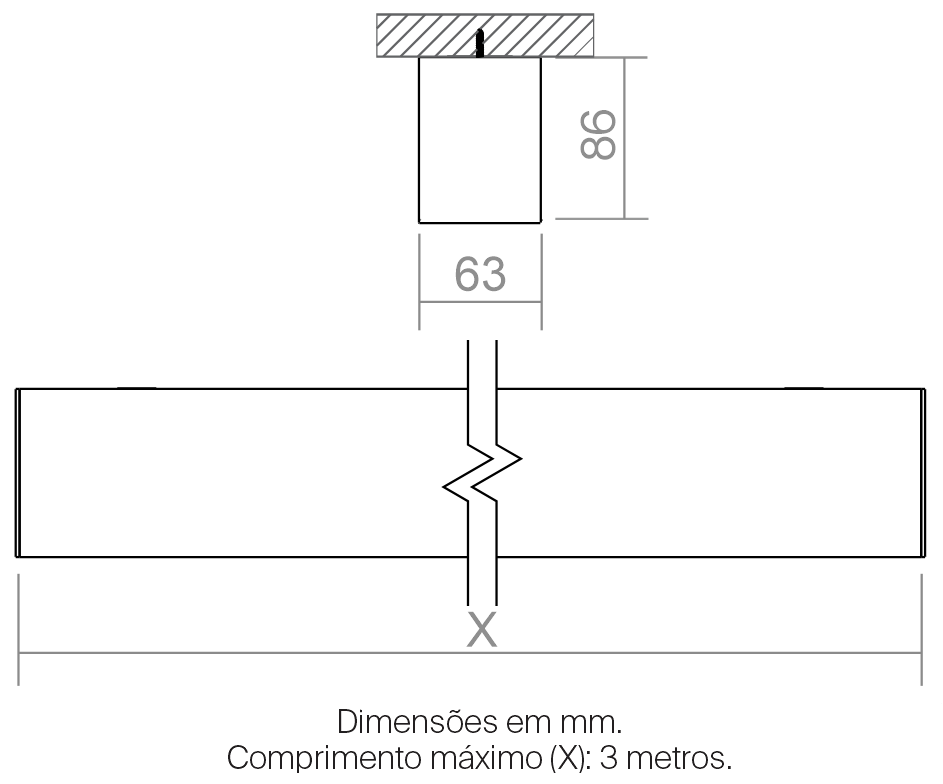

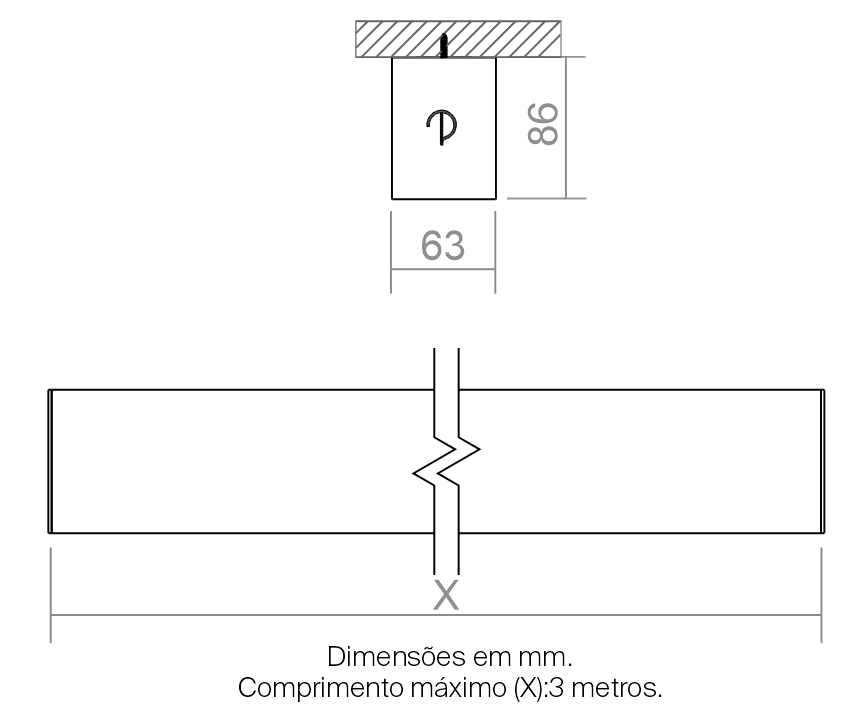

Comprimento máximo da peça sem emenda 300cm
IP40
SDMC<3
IRC>80

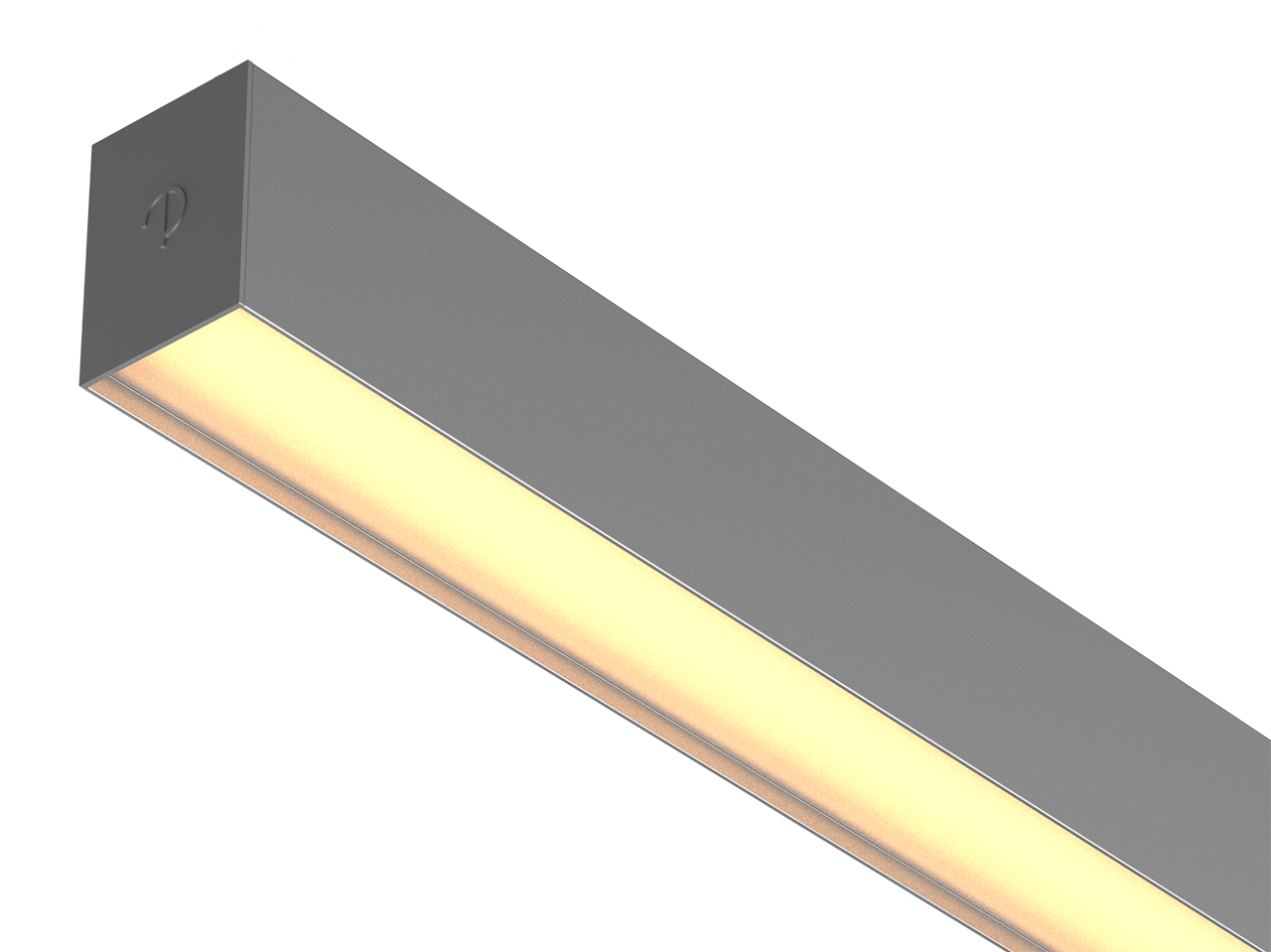

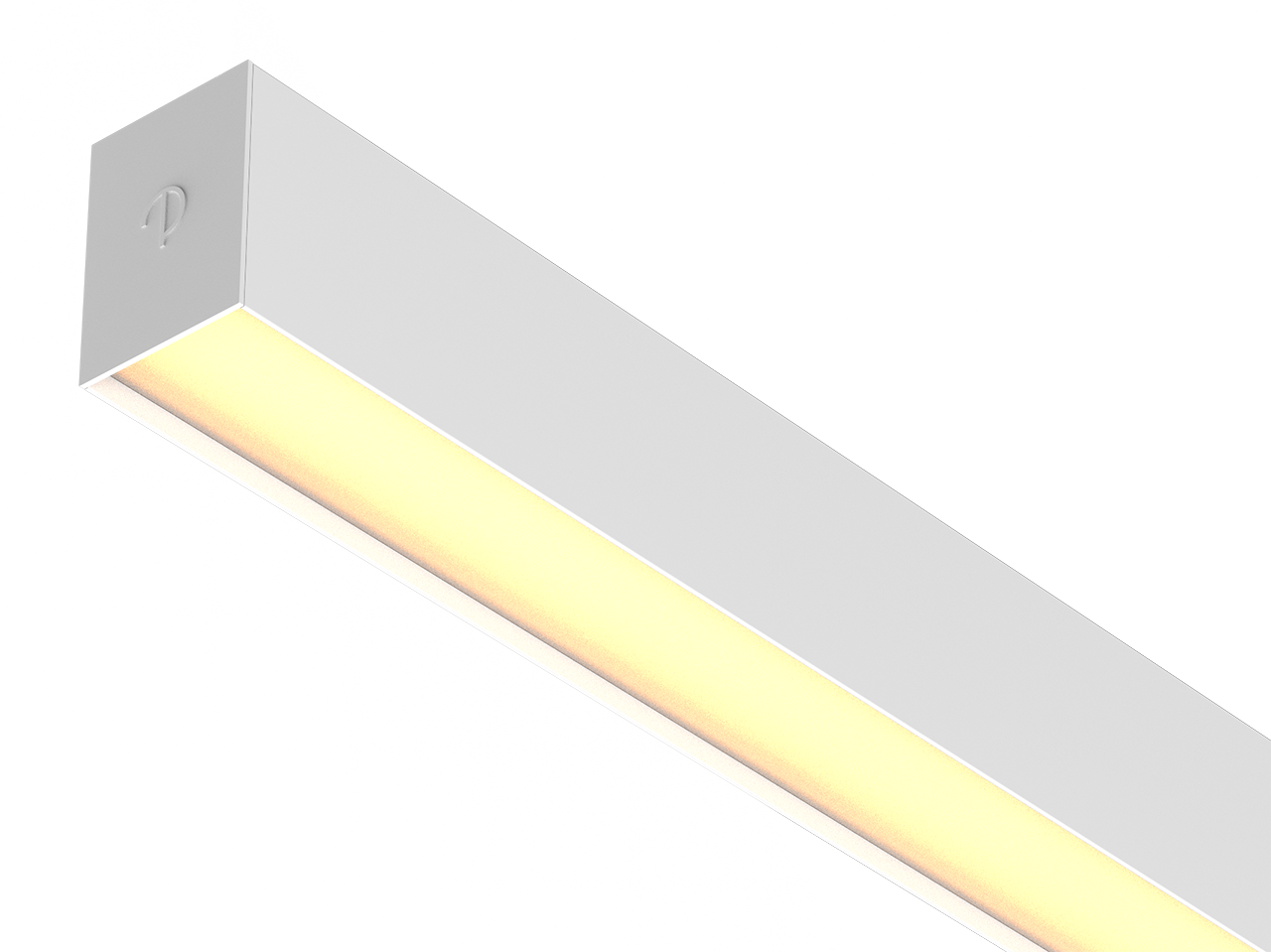

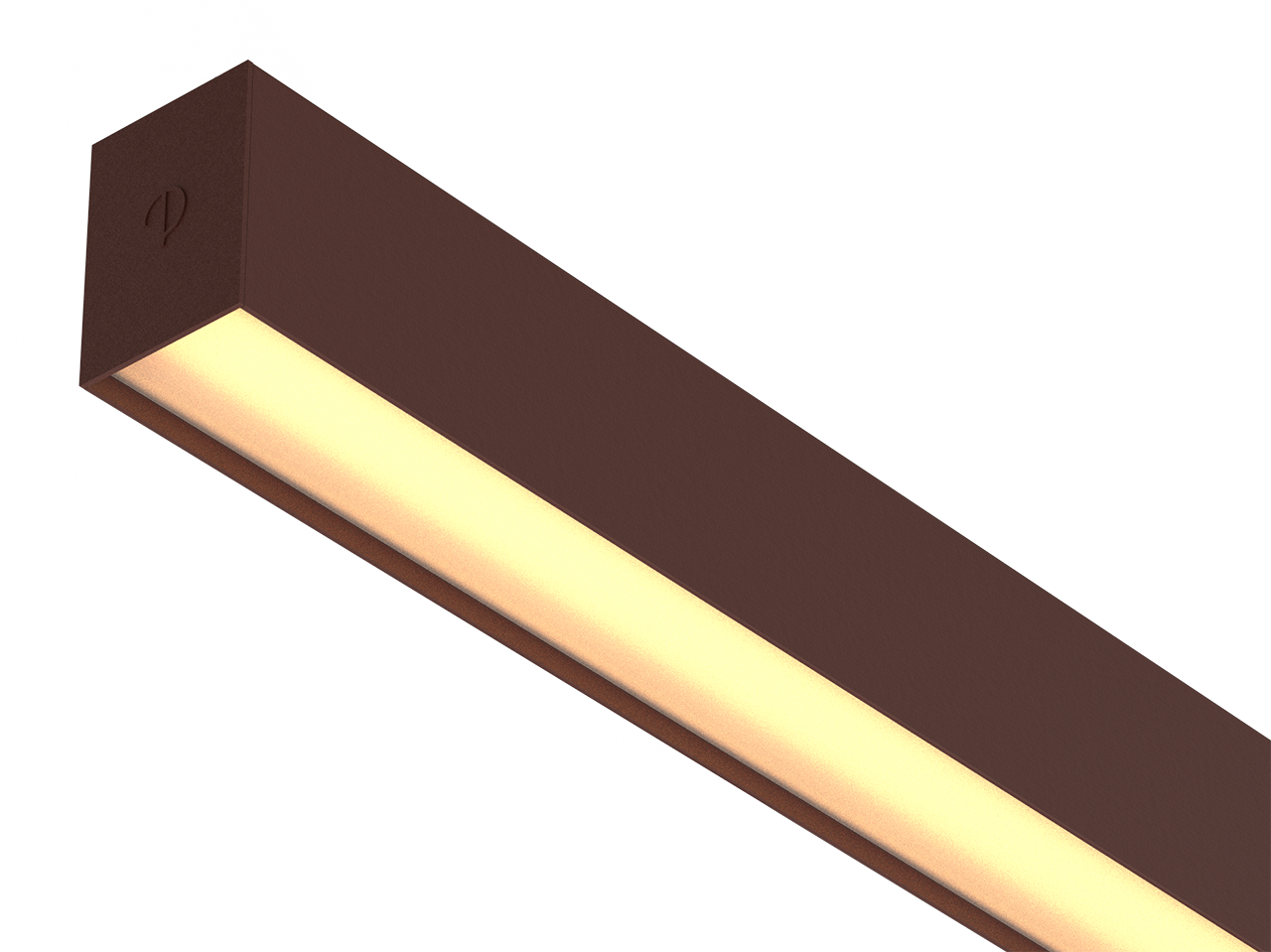

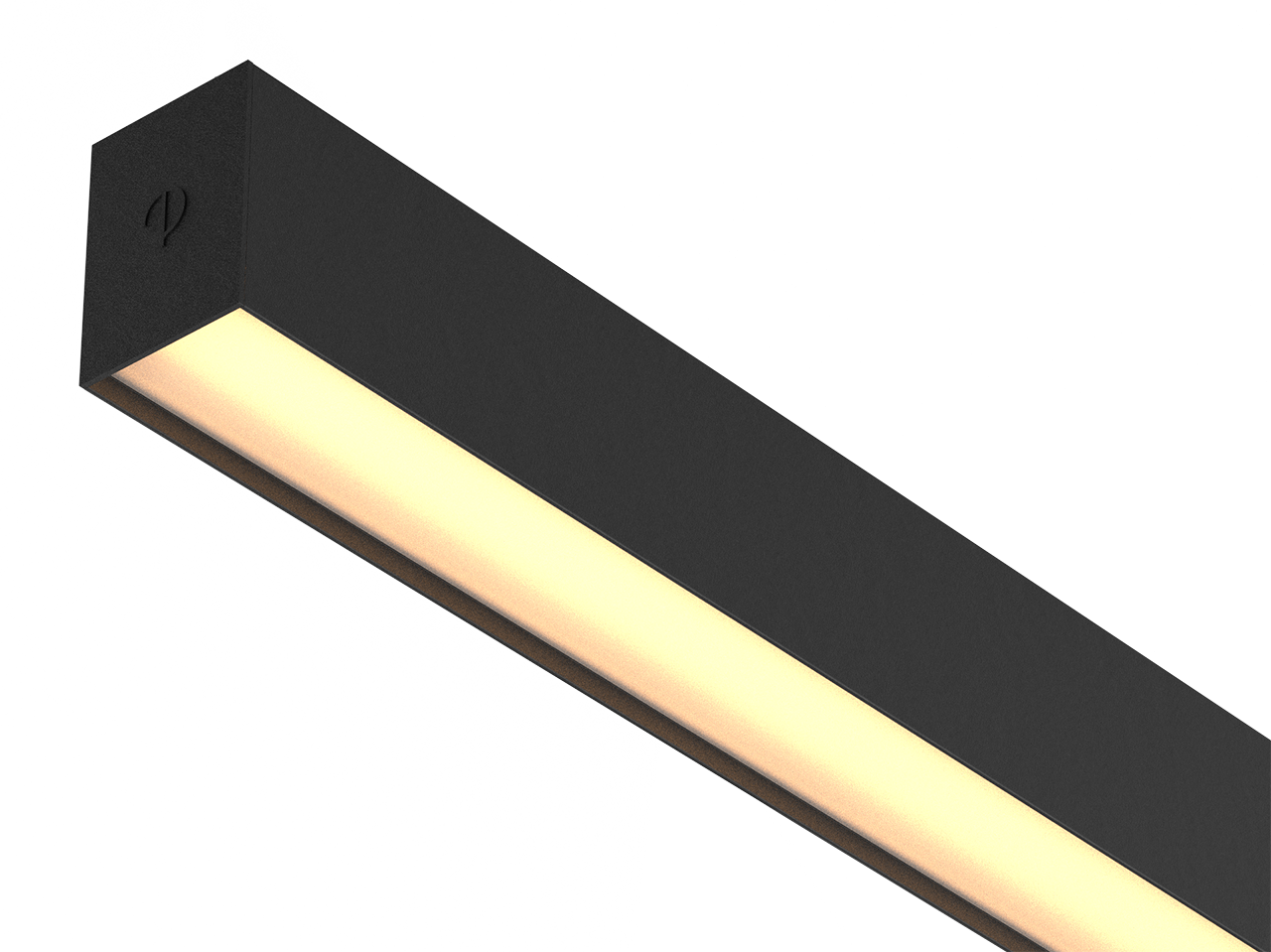

ACABAMENTOS
OPCIONAIS
IRC>90
TRIAC
DALI
1-10V
PWM
IMPRESSÃO DIGITAL
TW
Especificações
Perfil de Sobrepor 60mm Recuado 32W/m
SBP-R60 32W/m
+ ABRIR
Potência
32W/m
2700K
5024lm/m
3000K
5280lm/m
4000K
5504lm/m
5700K
5504lm/m
Downloads
TÍTULO
FORMATO
BAIXAR
FICHA TÉCNICA SBP-R60
.pdf
DESENHO TÉCNICO SBP-R60
.pdf
MANUAL DE INSTALAÇÃO SBP-R60
.pdf
IMAGENS EM ALTA RESOLUÇÃO SBP-R60
.zip
FOTOMETRIAS SBP-R60
.zip
ARQUIVO .SKP SBP-R60
.skp
