perfil-sobrepor-rodape-indireto-led

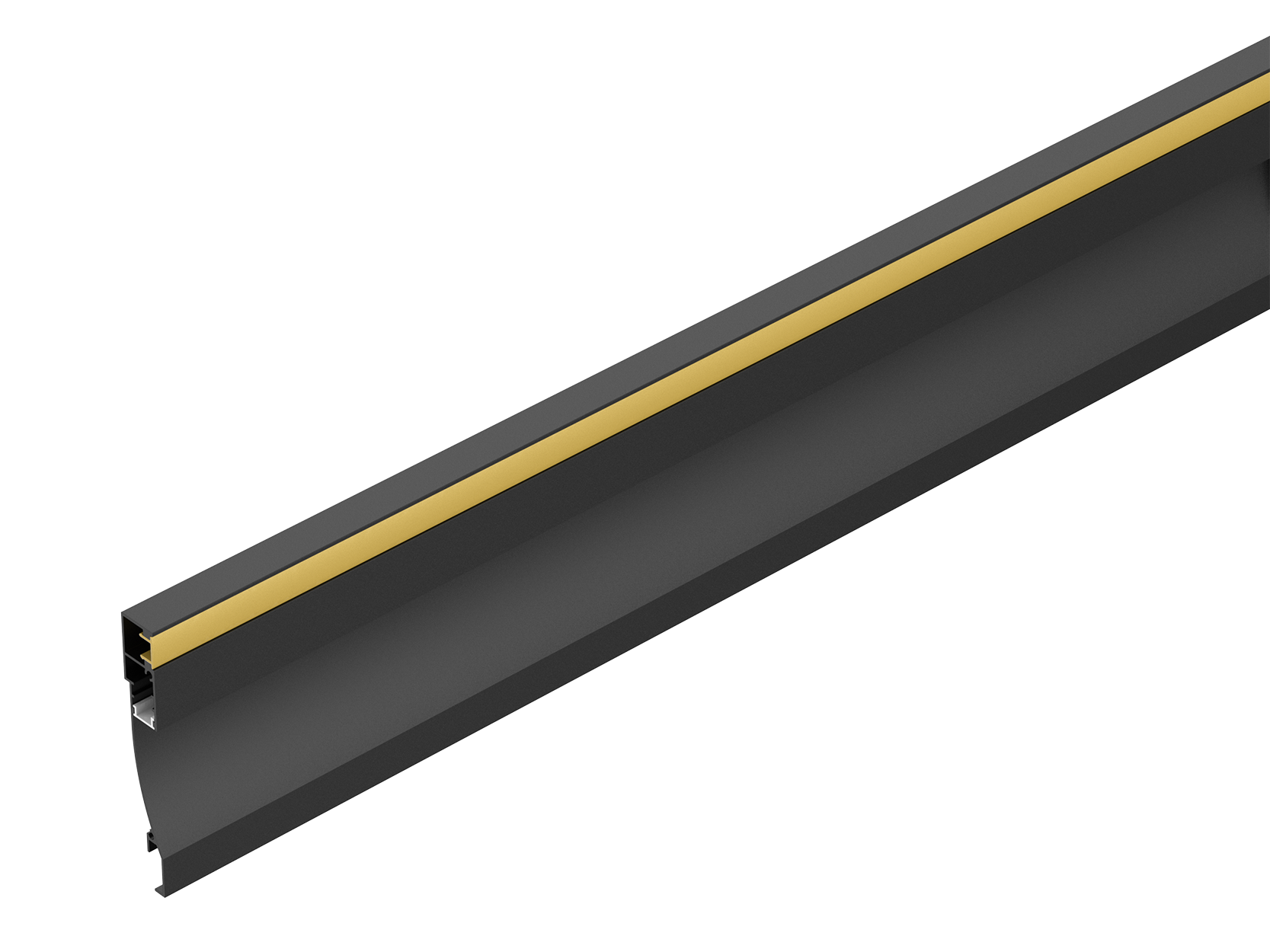

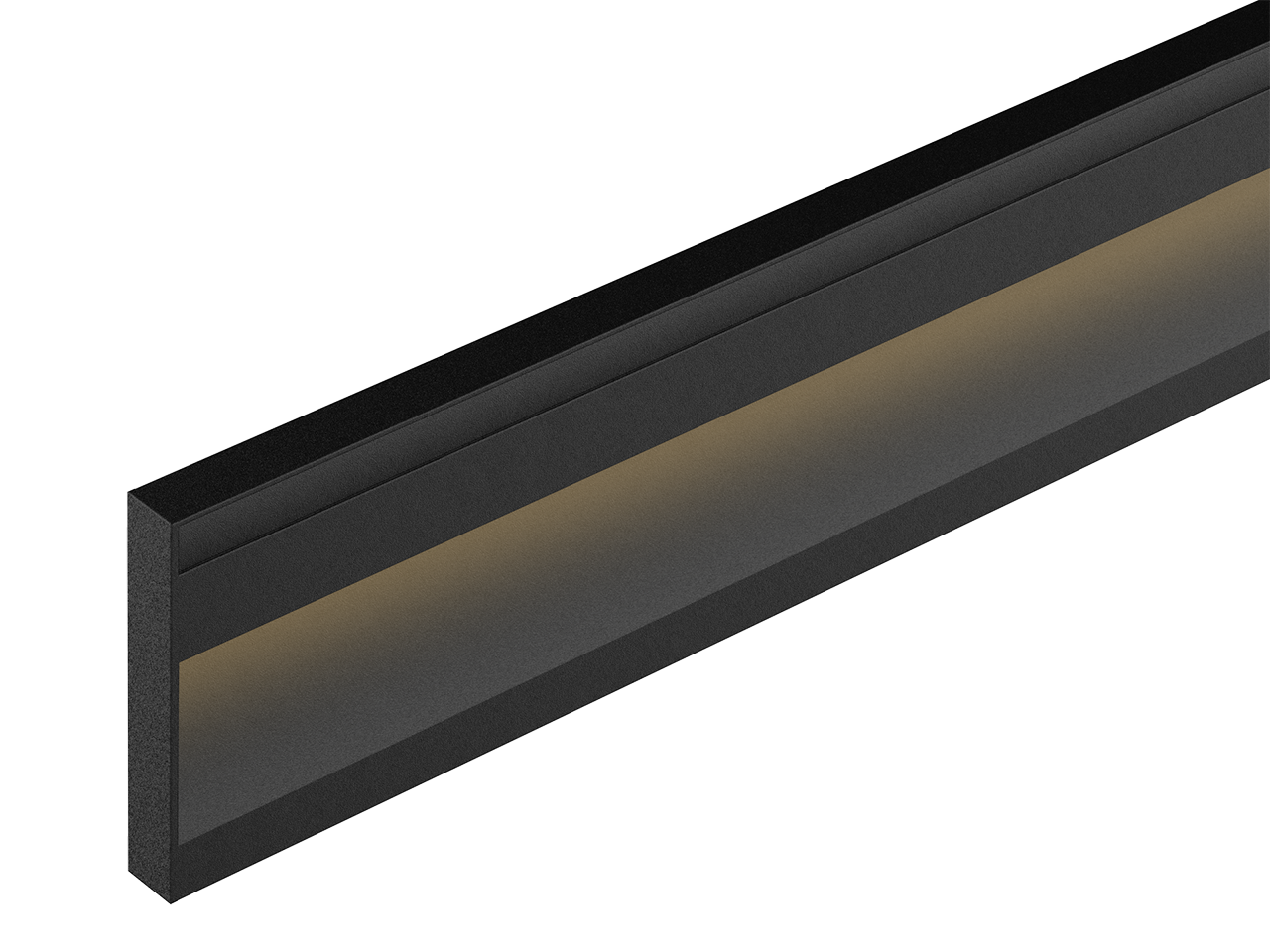

Perfil Sobrepor Rodapé Indireto LED

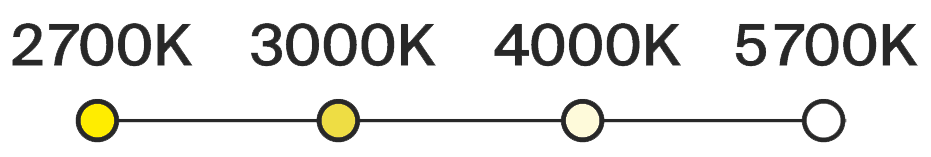

LED 2700K, 3000K, 4000K OU 5700K
DOWNLOADS
FICHA TÉCNICA
Código: RDP-IND
Corpo em alumínio extrudado e usinado
Difusor em PMMA extrudado translúcido anti UV
Cabeceiras em zamak
Pintura eletrostática epóxi microtexturizada
Perfil de acabamento com opcional em cores padrões, dourado ou cobre
Placa de LED rígida parafusada em perfil
Vida útil: 50.000h L70
Alimentação apenas em 12Vcc com driver remoto externo
Fixação parafusada através de perfil de encaixe
Corte personalizado sob medida (cm a cm)
Comprimento máximo da peça sem emenda 300cm
IP40
SDMC<3
IRC>80
ACABAMENTOS
OPCIONAIS
DALI
1-10V
IRC>90
TRIAC
PWM
TW
Especificações
Perfil Sobrepor Rodapé Indireto 5W/m
RDP-IND 5W/m
+ ABRIR
Potência
5W/m
2700K
785lm/m
3000K
825lm/m
4000K
860lm/m
5700K
860lm/m
Perfil Sobrepor Rodapé Indireto 10W/m
RDP-IND 10W/m
+ ABRIR
Potência
10W/m
2700K
1570lm/m
3000K
1650lm/m
4000K
1720lm/m
5700K
1720lm/m
Projeto Relacionado
Showroom Powerlume RS
Caxias do Sul - RS
Comercial
Downloads
TÍTULO
FORMATO
BAIXAR
FICHA TÉCNICA RDP-IND
.pdf

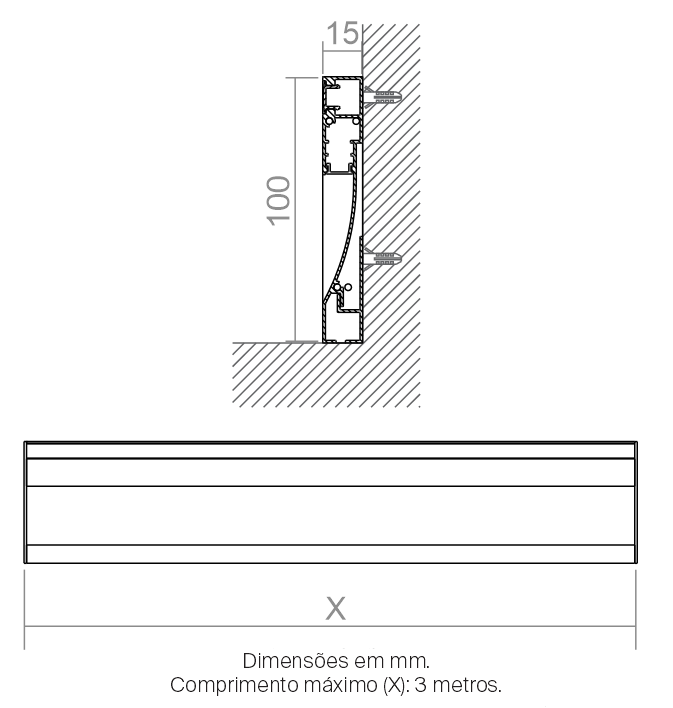

DESENHO TÉCNICO RDP-IND
.pdf
MANUAL DE INSTALAÇÃO RDP-IND
.pdf
IMAGENS EM ALTA RESOLUÇÃO RDP-IND
.zip
ARQUIVO .SKP RDP-IND
.skp
